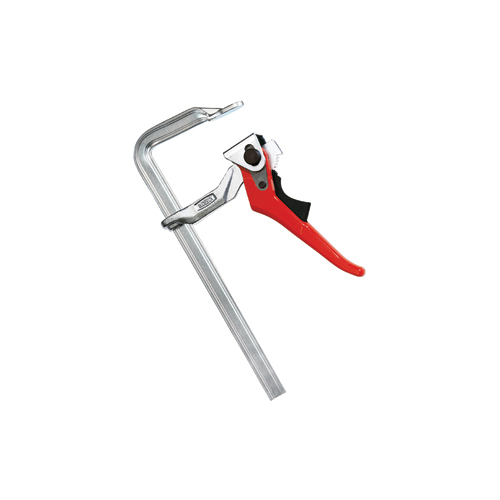

BESSEY GH20 Lever clamp GH 200/100, BE101338 - Greater reserves of power, thanks to optimised rail profile, for even clamping force build-up, especially under maximum utilisation of the clamping range. Non-slip trigger release. Sintered steel cams – particularly hard-wearing, low friction due to higher surface hardness. Quick – up to 5 x faster than regular clamps. Secure – vibration resistant. Strong – clamping force up to 8,500 N. Secure ratchet mechanism, The ratchet mechanism ensures rapid, controlled, vibration-free clamping. A hardened cam at the end of the lever ensures a long service life. Maximum stability, The optimised profile shape with greater reserves of force enables a more even application of force – especially under full utilisation of clamping width. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant.
- Opening A: 200 mm
- Throat depth b: 100 mm
- Rail section width: 22 mm
- Rail section thickness: 8.5 mm
- Weight approx.: 1.11 kg
