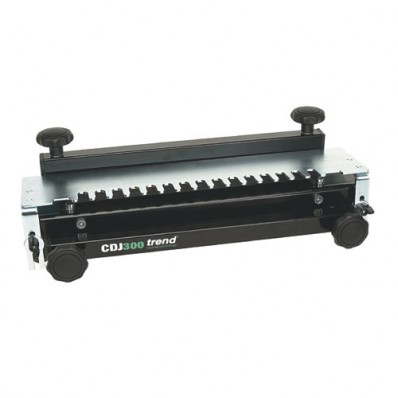

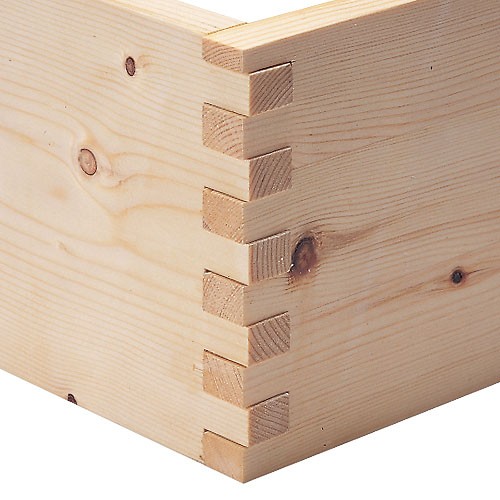

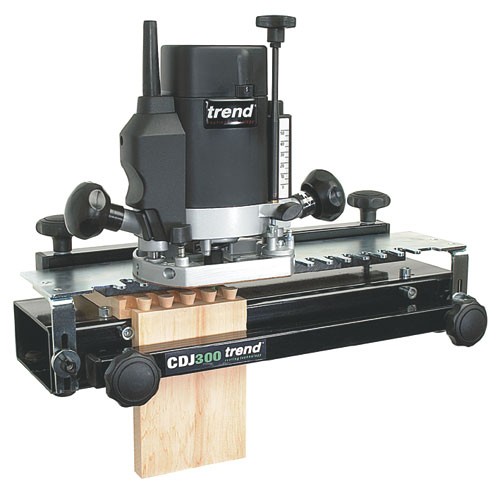

An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.
- Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
- Precision made laser cut zinc plated steel template with packing piece.
- A Unibase and fine height adjuster may be required for certain makes of router.
- A range of accessory templates are available for box joint, dowel and through dovetails.
- Dovetail size: 12.7 mm
- Cutter shank: 1/4"
- Workpiece width max.: 300 mm
- Workpiece thickness min.: 12 mm
- Workpiece thickness max.: 25 mm
- Guide bush size: 15.8 mm
- Router base dia. max: 180 mm
