- Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router.
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Fully adjustable apertures for fire door requirements and renovation work.
- Idea for fitting a new door in an old frame.
- No need for marking out in the conventional way.
- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
- Can be used on both inside and outside doors.
- Use with a light duty plunge router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm

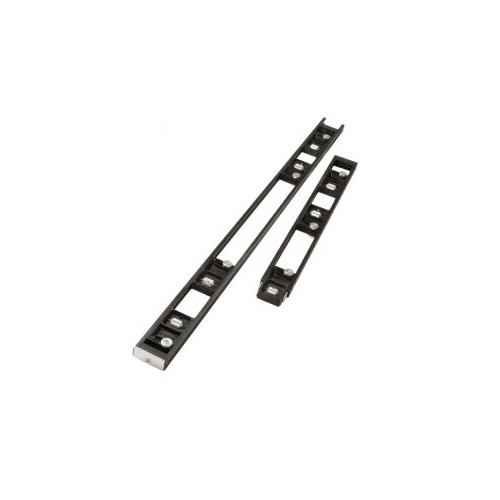

Trend H/JIG/C Two Part Skeleton Hinge Jig Complete With:
- 3 x Hinge sliding aperture block assemblies
- 4 x Bradawls (short blade)
- 1 x 16mm Guide bush
- 1 x Carry case
Hinge Sizes Possible:
- Length Min.: 2 5/8" (67mm)
- Length Max.: 5" (127mm)
- Width Min.: 1/2" (12.7mm)
- Width Max.: 1 3/8" (35mm)
Door Sizes Possible:
- Height Min.: 6' 5" (1,956mm)
- Height Max.: 6' 10"* (2,100mm*)
- Thickness Min.: 5/8" (16mm)
- Thickness Max.: 2" (51mm)
- Jig Overall Length: 1,956mm
*Please note for doors over 2040mm the bottom hinge will be higher than 9" up
