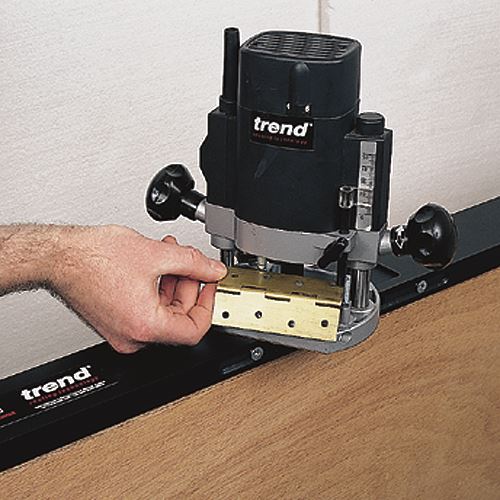

The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router.
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Four apertures for fire door requirements.
- No need for marking out in the conventional way.
- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
- Can be used on both inside and outside doors, and on maximum 25mm thick fixed stops.
- Use with a light duty plunge router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Angled position slots to prevent creep.
- Unibase may be needed.
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Hinge sizes possible
- Length min. 2-5/8" (67mm)
- Length max. 5" (127mm)
- Width min. 3/8" (9.5mm)
- Width max. 1-3/8" (35mm)
Door sizes possible
- Height min. 6'5" (1955mm)
- Height max. 6'10" (2100mm)*
- Thickness min. 5/8" (16mm)
- Thickness max. 2" (51mm)
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
