- Ideal for ambitious modellers and do-it-yourselfers
- Flywheels made of die-cast aluminum with special coating
- Aluminium cast iron worktable swiveling up to 45°

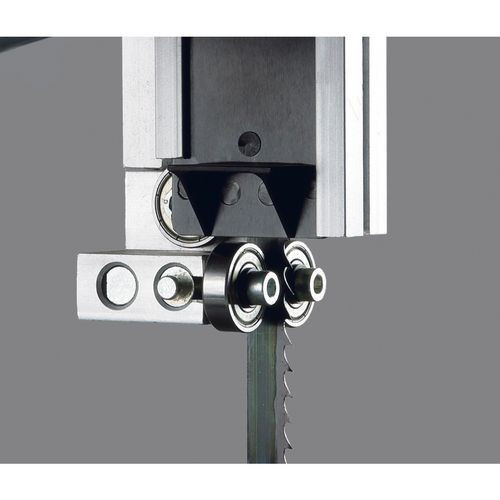

- Equipped with precise 3-rolls saw band guide above and below the table
- Aluminum longitudinal stop with quick clamping precisely adjustable with the aid of a magnifying glass and millimeter scale (except HBS 231-1)
- Two belt speeds adjustable (except HBS 231-1)
Cutting ranges
Max. cutting height 90° 90 mm
Max. cutting height 45° 50 mm
Max. cutting width with stop 125 mm
Max. cutting width without stop 228 mm
Dimensions and weights
Length approx. 490 mm
Width/depth approx. 420 mm
Height approx. 835 mm
Weight approx. 20 kg
Electrical Data
Delivery power 0.17 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter 53 mm
Saw band
Speed(s) 635 m/min
Length 1575 mm
Width 6.35 mm
Strength 0.35 mm
Work top(s)
Length 300 mm
Width 300 mm
Height 405 mm
Pivot 0 – 45 °
VPE 1
No details given.
