Enclosed base with high stability
Safe and run-free saw cuts in wood

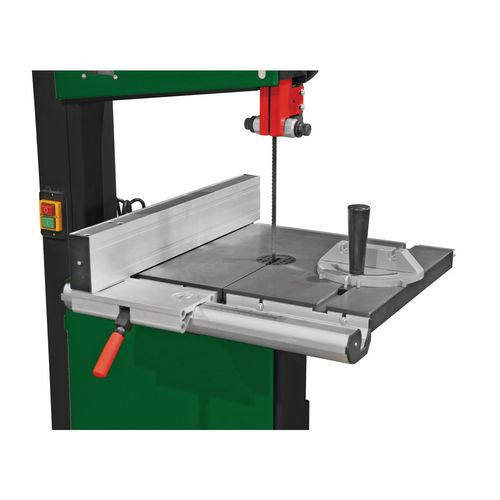

Heavy, tiltable cast-iron worktable with ground surface
Powerful motor
Safety switch shuts off the machine when the door is opened and prevents unintentional start-up
Grey cast iron flywheels ensure smooth running
Set cutting width can be easily read off a scale
Max. cutting height 90° 200 mm
Max. cutting width with stop 250 mm
Max. cutting width without stop 375 mm
Dimensions and weights
Length approx. 760 mm
Width/depth approx. 760 mm
Height approx. 1740 mm
Weight approx. 136 kg
Electrical Data
Delivery power 1,0 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter 100 mm
Saw band
Speed(s) 600 m/min
Length 2950 mm
Width 16 mm
Strength 0.52 mm
Work top(s)
Length 500 mm
Width 395 mm
Height 32 mm
Pivot 0 – 45 °
VPE 1
