- Robust cast iron machine table enables precise work
- Function selection via rotary switch
- Practical traveling device available as an accessory
Surface planer/thickness planer
- Thicknessing planer table adjustment via handwheel
- Rubberized pull-out roller protects the surface of the workpiece during thickness planing
- Dressing and thicknessing table made of gray cast iron with ground surface

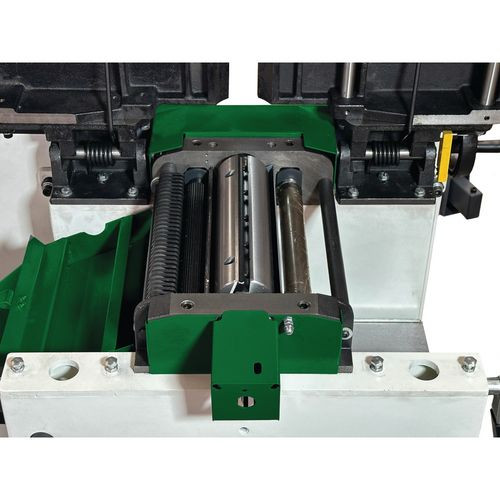

- Strip cutterblock with three HSS knives
- Aluminum planer fence can be tilted by 45

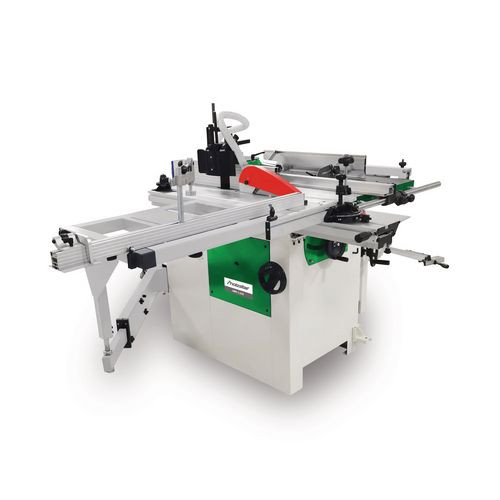

Circular sizing saw
- Circular saw blade can be tilted up to 45
- Table extension arm with aluminum cross-cut fence for panels and large workpieces
- Including cast aluminum workpiece clamp and adjustable micro fence
- Aluminum sliding carriage with 1300 mm length
- Aluminum rip fence with fine adjustment
Table milling machine
- Rigid milling spindle
- Spindle height adjustable by 110 mm
Slot drilling device
- Available as accessories
- Wescott drill chuck 3 - 16 mm
Circular saw unit
Trimming length 1300 mm
Saw blade angle 90 – 45 °
Max. cutting height at 90° 78 mm
Max. cutting height at 45° 63 mm
Diameter of (main) saw blade 254 mm
(Main) saw blade speed 4000 min¯¹
Dimensions and weights
Length approx. 2200 mm
Width/depth approx. 1330 mm
Height approx. 1300 mm
Weight approx. 362 kg
Electrical Data
Input power saw 2.2 kW
Input power planer 2.2 kW
Input power moulder 1.5 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Suction port diameter cutter 100 mm
Saw blade protection extraction port diameter 30 mm
Extraction port diameter thickness 100 mm
Feed
Speed 7 m/min
Jointing
Infeed table width 260 mm
Infeed table length 1120 mm
Max. cutting depth 4 mm
Milling cutter diameter max.
not lowerable 160 mm
Milling spindle
Mandrel diameter 30 mm
Usable length 105 mm
Height adjustment 110 mm
Speed(s) 1400/4000/6000/9000 min⁻¹
Noise emission
Sound pressure level idle 80 dB(A)
Sound pressure level load 92 dB(A)
Planing knife shaft
Diameter 70 mm
Number of planing blades 3 St
Speed 5500 min⁻¹
Sliding carriage and table
Sliding table length 1300 mm
Sliding table width 238 mm
Table length 920 mm
Table width 410 mm
Table height 850 mm
Thickness
Table length 545 mm
Table width 258 mm
Working height min. 5 mm
Working height max. 225 mm
Max. cutting depth 4 mm
VPE 1
