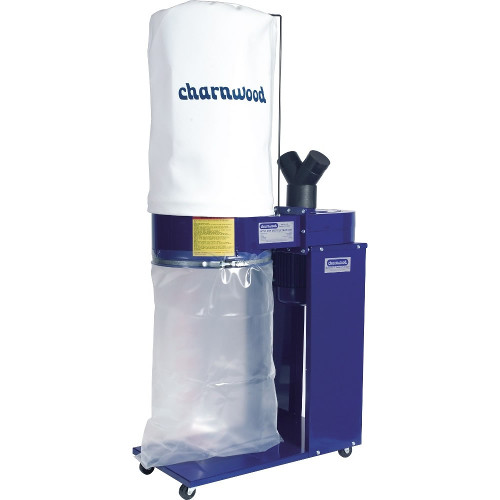

A powerful professional dust extractor with ample flow rate to extract from two machines at the same time.
- Quiet Induction Motor
- Up to 8 hours Continual Running
- Super Fine 2 micron Filter Bag
- Transparent Collection Bag
- Castors Included For Mobility
- Spring Clips To Aid Collection Bag Changing
- Riveted Steel Long Life Fan
Powered by a 2hp Induction motor rated for continuous running, up to 8 hours per day. A sturdy frame supports the fan unit and lifts the inlet port to a height of 110cm, which can give increased efficiency when a hose branch goes overhead or stays at bench height.
These larger collectors are ideal for locations where the extractor will be cited a little way from the dust source. The higher flowrate also allows a small system of hose branch lines to be fitted around the workshop to allow extraction from a variety of machines and even 2 at the same time.
The motor drives a riveted steel fan, which creates the airflow, depositing all dust, chips and shavings into the collection bag.
When it comes to emptying the collection bag, a quick release metal strap frees the bag, ready for replacement. Spring clamps hold the new collection bag in position whilst the metal strap is being refitted fitted. Anyone who has changed a bag without that feature will certainly appreciate it. A foam strip around the rim of the collector body ensures a good seal once the strap is clamped shut.
We fit as standard a super fine 2 micron cloth filter making the unit suitable even for MDF dust.
Maximum recommended total hose length is 7 metres @100mm diameter.
Supplied with transparent collection bag, durable steel fan, NVR switch, 4 castors, quick release metal straps, Y branch and 1.6m power cable (No plug).
A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
Motor (Induction) 1500w (2hp)
Voltage 415v (3 Phase), 50hz
Recommended Breaker Size 16 Amp type C
Airflow (Without Hose) 2130 m3/hour (1600CFM)
Max. Static Pressure 183mmAq (7.2 InH2O)
Impellor Size 305mm (12")
Inlet Diameter 1 x 125mm (5") or 2 x 100mm (4")
Collection Bag Capacity 148 Litres
Filtration 2 microns
Noise Level (@3m) 81dB
Dimensions (WxDxH) 880mm x 550mm x 1920mm
Weight 60 Kg
Assembly Time Required 60 Minutes (Needs 2 People)
Rating Industrial
Product Guarantee 5 Years
