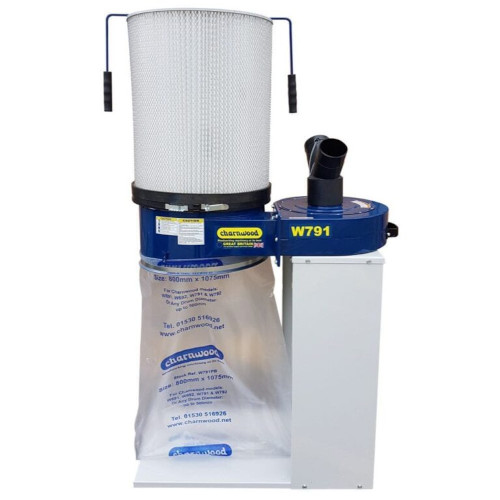

Charnwood W791CF Professional Dust Extractor With Cartridge Filter1500w, 240v

2HP Dust Extractor with 1 micron Cartridge Filter Upgrade

Powered by a 2hp Induction motor rated for continuous running, up to 8 hours per day. A sturdy frame supports the fan unit and lifts the inlet port to a height of 110cm, which can give increased efficiency when a hose branch goes overhead or stays at bench height.



These larger collectors are ideal for locations where the extractor will be cited a little way from the dust source. The higher flowrate also allows a small system of hose branch lines to be fitted around the workshop to allow extraction from a variety of machines and even 2 at the same time.



The motor drives a riveted steel fan, which creates the airflow, depositing all dust, chips and shavings into the collection bag.



When it comes to emptying the collection bag, a quick release metal strap frees the bag, ready for replacement. Spring clamps hold the new collection bag in position whilst the metal strap is being refitted fitted. Anyone who has changed a bag without that feature will certainly appreciate it. A foam strip around the rim of the collector body ensures a good seal once the strap is clamped shut.



The standard cloth filtration bag is replaced with a cartridge filter to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.



This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range. The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.



To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handle, moves the internal paddles which clean the inside of the filter and prevent clogging.



Supplied with transparent collection bag, durable steel fan, NVR switch, rubber wheels, quick release metal straps, Y branch and 1.6m power cable (No plug).



A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.



Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.

Motor (Induction) 1500w (2hp)

Voltage 240v, 50hz

Recommended Breaker Size 16 Amp type C

Airflow (Without Hose) 2130 m3/hour (1600CFM)

Max. Static Pressure 183mmAq (7.2 InH2O)

Impellor Size 305mm (12")

Inlet Diameter 1 x 150mm (6") or 2 x 100mm (4")

Collection Bag Capacity 148 Litres

Filtration 1 microns

Noise Level (@3m) 81dB

Dimensions (WxDxH) 880mm x 550mm x 1920mm

Assembly Time Required 60 Minutes (Needs 2 People)

Weight 60 Kg

Rating Industrial

Product Guarantee 5 Years
