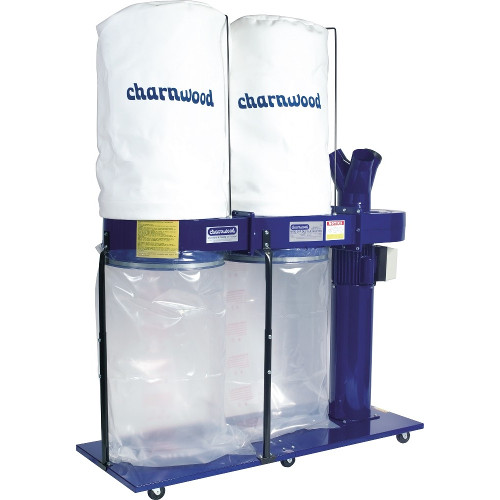

The biggest dust extractor in our professional range with two large collection bags to run for longer times between emptying.
- Quiet 415v Induction Motor
- Up to 8 hours Continual Running
- Super Fine 2 micron Filter
- Transparent Collection Bags
- Spring Clips To Aid Collection Bag Changing
- Inlet 1 x 200mm or 3 x 100mm
- Castors Included For Mobility
- Riveted Steel Long Life Fan
Powered by a 3hp Induction motor rated for continuous running, up to 8 hours per day. A rigid frame supports the fan unit and lifts the inlet port to a height of 110cm, which can give increased efficiency when a hose branch goes overhead or stays up at bench height.
These collectors are suitable for locations where the extractor will be cited a little distant from the dust source. The higher flowrate also allows a small system of hose branch lines to be fitted around the workshop to allow extraction from a variety of machines and even up to 3 at the same time.
The motor drives a riveted steel fan which creates the airflow, depositing all dust, chips and shavings into the collection bags. The two collection bags fill equally and are generally emptied at the same time.
When it comes to emptying the collection bag, a quick release metal strap frees the bag, ready for replacement. Spring clamps hold the new collection bag in position whilst the metal strap is being refitted. Anyone who has changed a bag without that feature will certainly appreciate it. A foam strip around the rim of the collector body ensures a good seal once the strap is clamped shut.
We fit as standard a super fine 2 micron cloth filter making the unit suitable even for MDF dust.
Maximum recommended total hose length per run is 10 metres @100mm diameter.
Supplied with transparent collection bag, durable steel fan, NVR switch, 4 castors, quick release metal straps, 3 way splitter and 1.6m power cable (No plug).
A 16 amp, 415v, 3 phase electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
Motor (Induction) 2200w (3hp)
Voltage 415v, 3 phase
Recommended Breaker Size 16 Amp type C
Airflow (Without Hose) 3450 m3/hour (2600CFM)
Max. Static Pressure 336mmAq (13.2 InH2O)
Impellor Size 330mm (13")
Inlet Diameter 1 x 200mm (8") or 3 x 100m (4")
Bag Capacity 296 Litres (2 x 148 Litres)
Filtration 2 micron
Noise Level (@3m) 85dB
Dimensions (WxDxH) 1560mm x 550mm x 1920mm
Assembly Time Required 60 Minutes (Needs 2 People)
Weight 75 Kg
Product Rating Industrial
Product Guarantee 5 Years
