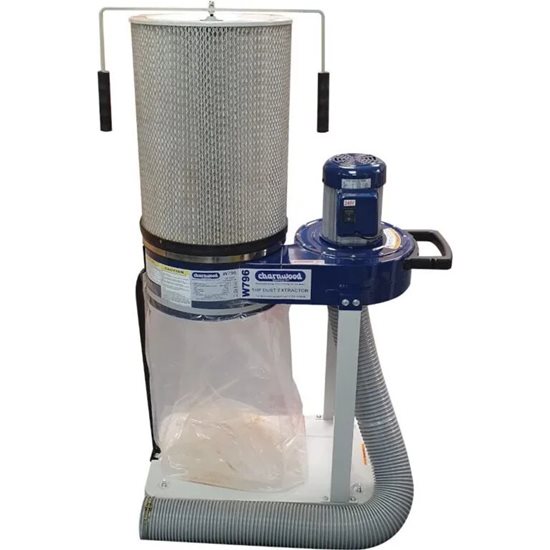

Charnwood W796CF Professional Dust Extractor With Cartridge Filter

W796 is a portable dust and chip extractor aimed at the professional workshop needing to extract from one machine at a time.

The W796 is a professional level dust extractor, capable of extended running times up to 8 hours per day. This package upgrades the normal 2 micron cloth filter to a 1 micron cartridge filter.



The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.



This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range. The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders. To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handle, moves the internal paddles which clean the inside of the filter and prevent clogging.



It is supplied with a length of 100mm diameter hose, ready to connect to most machinery.



The induction motor runs quietly, turning a steel fan to generate the airflow. Dust, chips and shavings are all forced down into the collection bag, with air then passing through the filter material. The collection bag  is a see through heavy gauge plastic fastened by a quick release metal strap. A rubber strip runs around the rim of the collector body to ensure a tight seal when the bag is clamped.



Supplied with ‘indestructible’ steel fan, 2m length of 100mm diameter flexible hose, 2 hose clips, 100mm inlet, transparent collection bag, 4 steering castors, 1.6m power cable and UK 3 pin plug. Runs on a standard 13 amp fused supply.

Motor (Induction) 750w (1hp)

Voltage 240v

Flowrate (cubic metres per hour) 1000 m3/hour

Inlet 100 mm

Bag Capacity 70 Litres

Collector Drum Diameter 370mm

Dimensions (WxDxH) 780mm x 390mm x 1370mm

Weight 36 Kg

Assembly Time Required 45 Minutes

Rating Trade

Product Guarantee 5 Years
