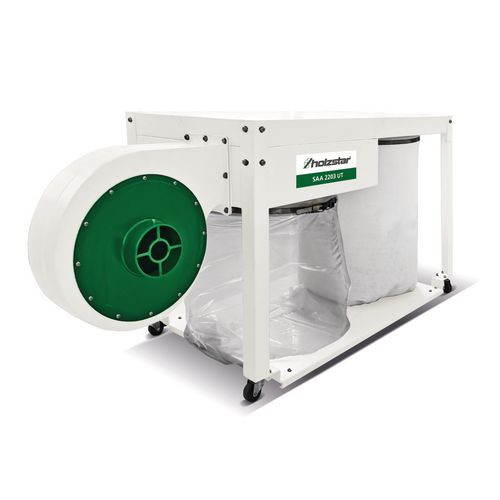

- Ideal for e.g. positioning under the machine table thanks to its flat design
- For extracting milling, planing and sawing chips
- For a clean and healthy workplace in the workshop
- Steel paddle fan wheel ensures constantly high extraction performance
- Supplied with chassis as factory standard
- Easy fastening of bags with tensioning straps
Extraction duct inlet outside nominal width 120 mm
Extraction duct outlet outside nominal width 1 x 120 mm
Length approx. 1540 mm
Width/depth approx. 550 mm
Height approx. 750 mm
Weight approx. 50 kg
Motor input 2,2 kW
Supply voltage 400 V
Mains frequency 50 Hz
Max. sound pressure level 89 dB(A)
Rated volume flow 2200 m³/h
Max. negative pressure 2200 Pa
VPE 1
