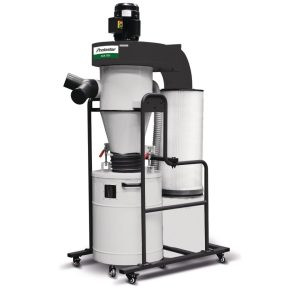

- Effective cyclone technology with 2-stage filtration
- Separation of larger impurities in the waste container and fine dust in the cartridge filter
- Sight glass for checking the fill level in the container
- Manual filter cleaning via rotary crank for consistently high extraction performance
- Flexible maneuvering thanks to swivel castors on the extraction unit and filling container
- Easy emptying of the mobile filling container thanks to quick-release fastener
Dimensions and weights
Chip collection volume 118 l
Extraction duct inlet outside nominal width 1 x 150, 2 x 100 mm
Length approx. 1145 mm
Width/depth approx. 654 mm
Height approx. 1830 mm
Weight approx. 82 kg
Electrical Data
Motor input 2,2 kW
Supply voltage 230 V
Mains frequency 50 Hz
Filter
Filter surface area 3.5 m²
Noise emission
Max. sound pressure level 80 dB(A)
Volume flow
Rated volume flow 1325 m³/h
VPE 1
