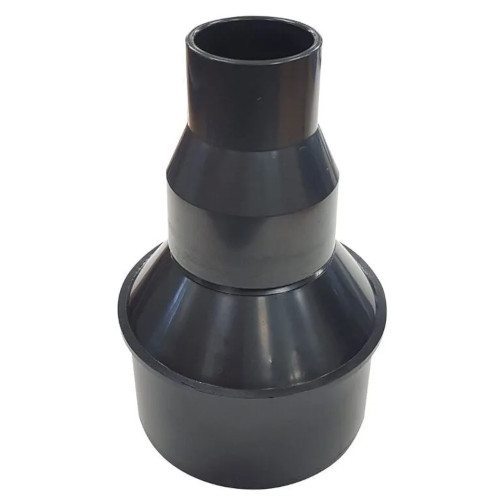

Charnwood 100/38RC Reducing Connectors

Used for stepping down or up in hose size and used for connecting a hose line to machinery with a different sized outlet.



It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted. Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum. A 100mm hose clamp should be used to fasten the hose the reducer.



Outside Diameter 100mm to 38mm

Inside Diameter 93mm to 31mm

Overall Length 170mm

Material Plastic
