Functions
The start of the perfect edge.

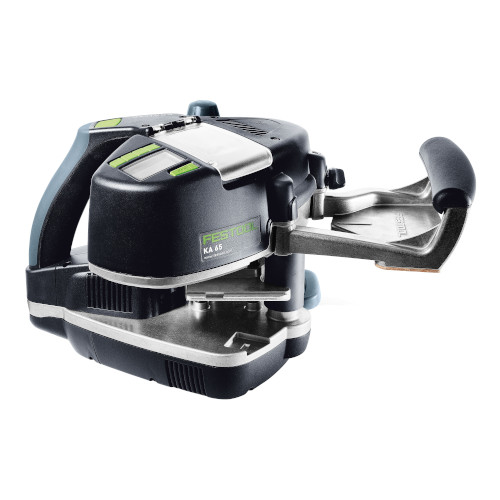

For furniture edging that is worthy of being called "perfect". With an integral system that accompanies the new CONTURO KA 65 from the workpiece being prepared right through to the perfect edge finish. For classic furniture edging or manufacturing shaped parts with convex or concave curves. For finishing work in wood, melamine or plastic. For variable edge heights and material thicknesses up to 3 mm.
- Easy, clean and efficient working progress and patented cartridge gluing system for quick colour changes
- Precision glue application for a perfect join quality and maximum adhesion
- Nozzle system that is easy to clean, machine housing does not heat up, allowing safe working progress
- Adhesive melts according to requirements and does not boil, discolour or deteriorate
- Easy to handle, perfect ergonomics, clear view of the workpiece
- Perfect in a system - integrated in a complete system of accessories and consumable materials for achieving the perfect edge
Main applications
- Affixing wooden, plastic or laminated plastic edging to panel materials
- Possible to attach edging to simple rectangular components or more complex free forms
- Also as an addition to the machining centre, for affixing edging to complex free form and round elements
- Suitable for mobile use, for rapidly reworking edges in situ
- Suitable for stationary use and small batches, straight edges, free form elements and gluing inclined edges, angle from 0-47°
Power consumption 1 200 W
Edge height 18 - 65 mm
Edge thickness 0,5 - 3,0 mm
Inner radius > 50 mm
Heating time 8.00 min
Melting temperature 100 - 210 °C
Feed speed 2/4 m/min
Safety class I
Cable length 6.00 m
Product weight without accessories 8.20 kg
Transport weight incl. accessories 12.40 kg
Drive type Mains

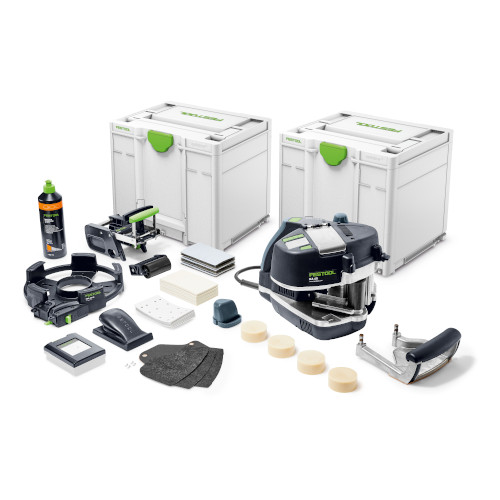

front handle
4 x EVA adhesive, natural
Magazine for holding edging KSP-KA 65
Sanding block HSK 80x133 H
20x StickFix Granat 80 x 133 P320 abrasive sheets
Additional roll ZR-KA 65
Trimming machine KP 65/2
Scraper ZK HW 45/45
Scratch protector LAS-STF-KA 65
Polishing felt PF-STF 80x133 STF H/5
Sanding vlies STF 80x130 SF 800 VL/5
Polishing agent MPA 5010 OR/0,5L
Systainer³ SYS3 M 337
