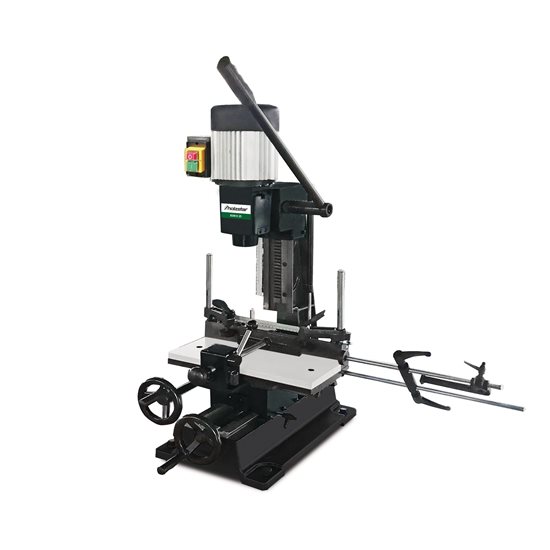

- For easy production of slot-pin connections
- Solid cast construction of the machine frame with precise dovetail guides in each axis
- Long lever for quill stroke for chiseling out with little effort
- Movable clamping jaws can be mounted in three different positions
- Two adjustable stops each for X and Y direction
- The machine head is additionally held with a gas pressure spring for easier handling
- Tool holder via drill chuck with gear rim
Dimensions and weights
Length approx. 790 mm
Width/depth approx. 620 mm
Height approx. 1065 mm
Weight approx. 89 kg
Electrical Data
Rating 0.75 kW
Supply voltage 230 V
Mains frequency 50 Hz
Spindle
Max. height of workpiece 210 mm
Max. depth of workpiece 145 mm
Max. Chisel stroke 76 mm
Chisel sizes 6 – 25.4 mm
Drill chuck mount B16-16mm
Speed 1400 min¯¹
Work top(s)
Work table lenth 400 mm
Work table width 150 mm
Table travel X 175 mm
Table travel Y 150 mm
VPE 1
