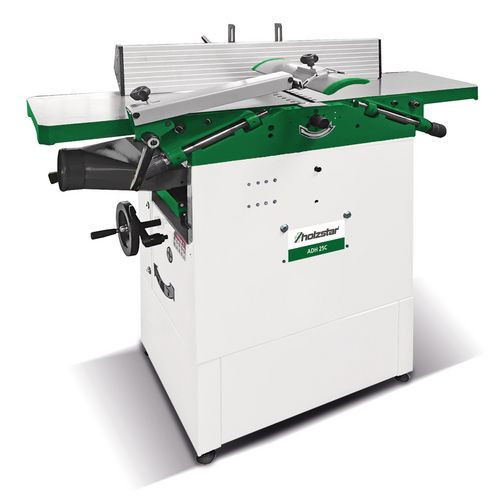

- For angle joints (90°) and precise surface planing of solid wood boards, planks and slats
- Easy and precise adjustment of chip removal in precision thicknessing
- Jointing and thicknessing table made of cast iron with polished surface
- Strip planer knife shaft with three HSS knives
- Aluminum planing stop can be inclined 45°
- Integrated, folding swarf extraction hood
Dimensions and weights
Length approx. 1100 mm
Width/depth approx. 700 mm
Height approx. 980 mm
Weight approx. 142 kg
Electrical Data
Absorbed power drive motor 1,5 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter thickness 100 mm
Feed
Speed 8 m/min
Jointing
Max. cutting depth 3 mm
Planing stop pivoting range 90 – 45 °
Planing knife shaft
Type Strip planer blade shaft
Number of planing blades 3 St
Speed 4000 min¯¹
Max. planing width 250 mm
Thickness
Working height min. 5 mm
Working height max. 195 mm
Max. cutting depth 2 mm
VPE 1
