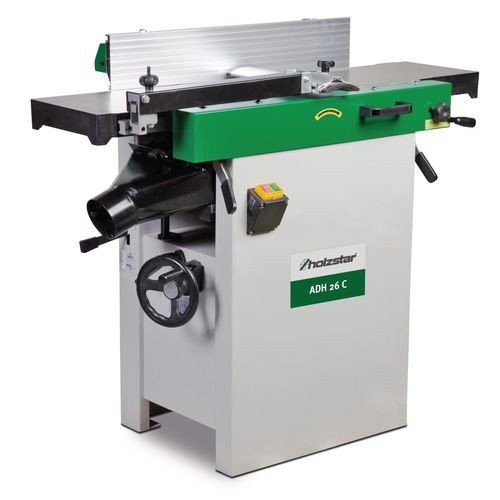

- For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
- Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
- Automatic workpiece feed
- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Large thick cast iron table with ground surface
- Integrated, foldable chip extractor hood
- Equipment:
Simultaneous opening of the dressing tables

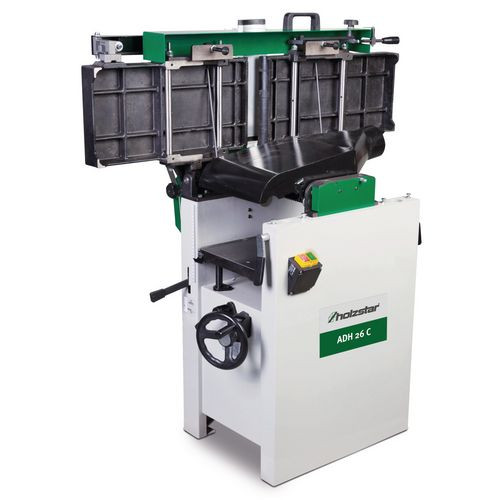

- Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds
- Fixed suction hood
Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion
time-saving
- The table height adjustment is easy and convenient via a handwheel
Dimensions and weights
Length approx. 1120 mm
Width/depth approx. 630 mm
Height approx. 960 mm
Weight approx. 170 kg
Electrical Data
Drive motor output 1.7 kW
Absorbed power drive motor 2.3 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter thickness 100 mm
Extraction port diameter joints 100 mm
Feed
Speed 5.5 m/min
Jointing
Max. cutting depth 3 mm
Planing stop pivoting range 90 – 45 °

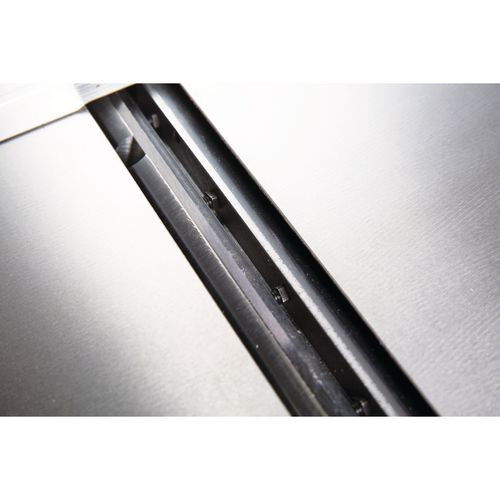

Planing knife shaft
Type Strip planer blade shaft
Number of planing blades 3
Speed 5200 min¯¹
Max. planing width 258 mm
Thickness
Working height min. 5 mm
Working height max. 225 mm
Max. cutting depth 3 mm
VPE 1
