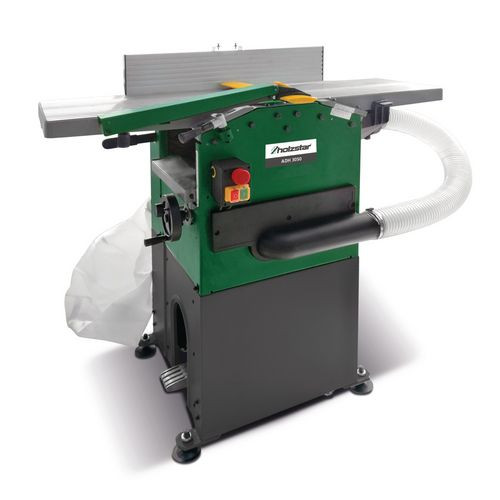

- For angular joining (90°) and precise planing of solid wood boards and moldings
- Automatic workpiece feed
- Rubberized extraction roller protects the wood surface when planing thick
- Suction integrated in the substructure
- With chassis as standard
- Simple and precise adjustment of the chip removal
- Dressing table made of milled cast aluminum
- Space-saving compact design
Dimensions and weights
Length approx. 1140 mm
Width/depth approx. 800 mm
Height approx. 1075 mm
Weight approx. 93 kg
Electrical Data
Drive motor output 1.25 kW
Absorbed power drive motor 1,8 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Suction hood connection diameter 100 mm
Suction unit connection diameter 75 mm
Feed
Speed 8.5 m/min
Jointing
Max. cutting depth 3 mm
Planing stop pivoting range 90 – 45 °
Planing knife shaft
Type Strip planer blade shaft
Number of planing blades 2 St
Speed 6700 min¯¹
Max. planing width 305 mm
Thickness
Working height min. 6 mm
Working height max. 160 mm
Working length min. 250 mm
Max. cutting depth 2 mm
VPE 1
