- With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
- With height-adjustable sanding table
- Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
- Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding
- Table height adjustment by handwheel
- Robust gray cast iron work table with T-slots, stable machine stand when working
- With height-adjustable additional table for contour sanding
- Quick and easy sanding belt change via quick clamping system
- Spring-loaded clamping device for a uniform belt tension
- Sanding sole with graphite coating as standard
- Extraction nozzle Ø 100 mm
- With lockable storage option in the standard substructure
Room amenities:

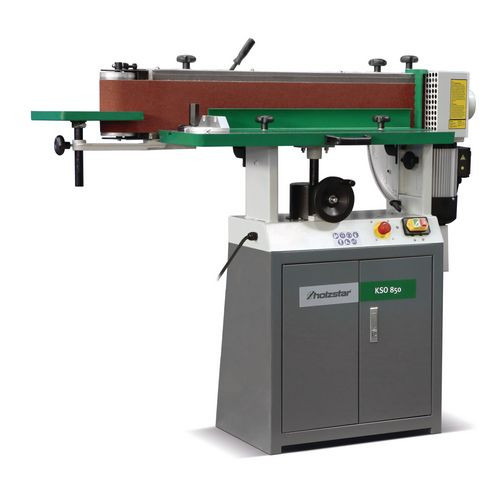

Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used
Dimensions and weights
Length approx. 1430 mm
Width/depth approx. 600 mm
Height approx. 1250 mm
Weight approx. 187 kg
Electrical Data
Absorbed power drive motor 2.2 kW
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter 100 mm
Sanding machine
Sanding belt length 2515 mm
Sanding belt width 150 mm
Circumferential belt speed(s) 16 m/s
Sanding surface length 950 mm
Sanding surface width 180 mm
Work top(s)
Work table height adjustment 80 mm
Longitudinal table length 850 mm
Longitudinal table width 300 mm
Longitudinal table height adjustment 80 mm
Min. cross table height 965 mm
VPE 1
No details given.
