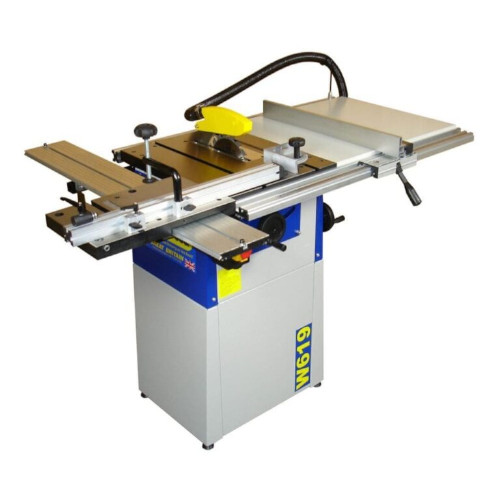

Charnwood W619 8" Table Saw

Cast Iron Table Saw with an 8″ diameter blade, quick action precision rip fence and bearing guided sliding carriage.


• Quiet Induction Motor
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Hand wheels for Blade Adjustment
• Quick Action Precision Rip Fence
• 100mm Dust Extraction Outlet
• Solid Floor stand Base Included
• Optional Wheel Kit Available

W619 Table saw is a compact, high quality table saw with a quiet induction motor. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop.



The quiet running induction motor turns the blade via a drive belt which means the blade is mounted onto a dedicated shaft. Expect greatly reduced noise and increased accuracy. Far superior to any gearbox type system found on most hobby level machines.



Blade height and blade angle are controlled using 2 separate hand wheels. The front handle adjusts the height of the blade, 1 clockwise rotation lowers the blade by 2mm. The side hand wheel adjusts the angle of the blade, anywhere from 90 degrees to 45 degrees with a locking level to ensure it does not creep. There is a large scale on the front of the cabinet to read the current angle off.



The rip fence slides smoothly along an aluminium rail. A single locking lever sets the fence at the desired width, anywhere up to the huge capacity of 730mm (28″).  There is a sight line looking down onto a scale measured in millimeters. The scale has 2 sets of numbers depending on whether the guide fence is set in the high or low position. For general working the higher fence face is used, but for cutting very narrow strips the fence is rotated to the low position to give clearance right up to the side of the blade.



For quick crosscut jobs there is a sliding mitre fence supplied which runs in one of the T-slots, located on each side of the saw blade. The block is a one-piece metal diecast and has 2 perpendicular faces which can be rotated by 45 degrees each way. The front face has a slot allowing a home made sacrificial fence to be added.



For very accurate crosscutting, the highlight of the saw is the sliding table. It glides along a guide rail running on 4 bearings. When pulled into the forward position it can load a 600mm (24″) board onto the table. There is a vertical work clamp to hold the board whilst making the cut. The angle of the back fence can be adjusted through a range of 45 degrees, with a positive stop to bring it back to 90 degrees. A flip over length stop completes the setup for making repeat cuts.



The hose kit supplied collects dust from the overhead saw guard and from underneath the blade meeting at a single 100mm diameter hose connection point at the back of the machine.

Main Table Size 530mm x 1000mm

Maximum Ripping Width Using Fence 730mm

Crosscut Table Size 400mm x 180mm

Maximum Crosscutting Width 600mm

Max. Using Alternate Assembly 700mm

Blade Tilt (To Left) 90 - 45 degrees

Cutting Depth at 90 degrees 60mm

Cutting Depth at 45 degrees 47mm

Blade Diameter 200mm

Blade Bore 30mm

Work Table Height 860mm

Mitre Guide T-Slot Width 15/19mm

Mitre Guide T-Slot Depth 7mm

Motor (induction) 1100w (1.5hp) / 240v

No-Load Blade Speed 4700 rpm

Minimum Blade Width (Kerf) 2.6mm

Assembled Dimensions (WxDxH) 1460 x 1010 x 1030mm

Assembly Time Required 60 Minutes (Needs 2 People)

Shipping Dimensions 1 (WxDxH) 650 x 490 x 470mm

Shipping Dimensions 2 (WxDxH) 640 x 420 x 240mm

Shipping Dimensions 3 (WxDxH) 1040 x 180 x 80mm

Minimum Door Access Width 500mm

Weight (Gross / Net) 92 / 85Kg

Rating Light Trade

Product Guarantee 5 Years
