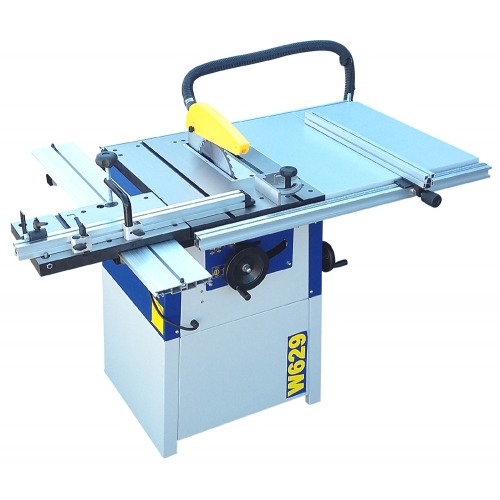

Charnwood W629 10" Table Saw

• Quiet Induction Motor with Brake
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Handwheels for Blade Adjustment
• Quick Action Precision Rip Fence
• 100mm Dust Extraction Outlet
• Solid Floorstand Base Included
• Optional Wheel Kit Available

The W629 is our best selling table saw model. The cutting capacities are big enough for any hobby workshop, providing a level of accuracy only normally found on industrial machinery, with a compact foot print suited to the average sized workshop.



The quiet running induction motor turns the blade via a drive belt which means the blade is mounted onto a dedicated shaft. Expect greatly reduced noise and increased accuracy. Far superior to any gearbox type system found on most hobby level machines.



Blade height and blade angle are controlled using 2 separate hand wheels. The front handle adjusts the height of the blade, 1 clockwise rotation lowers the blade by 2mm. The side hand wheel adjusts the angle of the blade, anywhere from 90 degrees to 45 degrees with a locking level to ensure it does not creep. There is a large scale on the front of the cabinet to read the current angle off.



The rip fence slides smoothly along an aluminium rail. A single locking lever sets the fence at the desired width, anywhere up to the huge capacity of 730mm (28″).  There is a sight line looking down onto a scale measured in millimeters. The scale has 2 sets of numbers depending on whether the guide fence is set in the high or low position. For general working the higher fence face is used, but for cutting very narrow strips the fence is rotated to the low position to give clearance right up to the side of the blade.

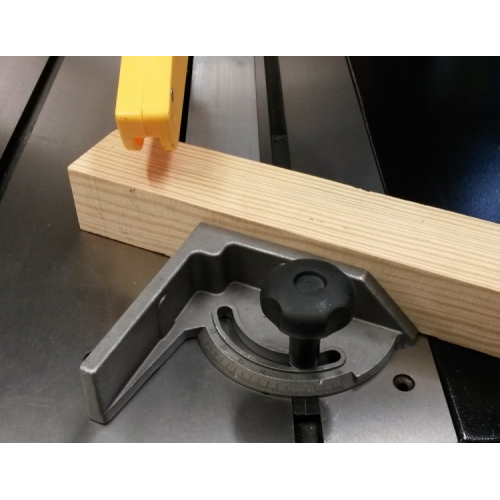

For quick crosscut jobs there is a sliding mitre fence supplied which runs in one of the T-slots, located on each side of the saw blade. The block is a one-piece metal diecast and has 2 perpendicular faces which can be rotated by 45 degrees each way. The front face has a slot allowing a home made sacrificial fence to be added.

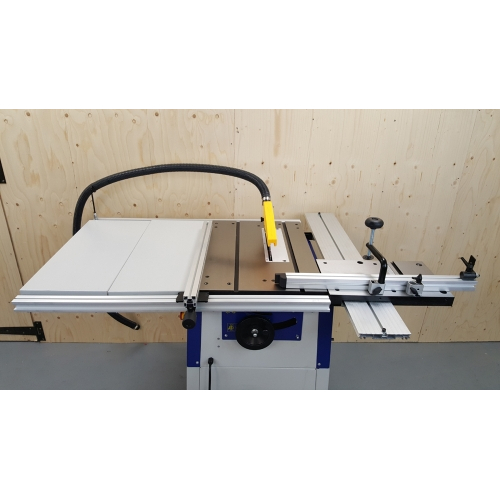

For very accurate crosscutting, the highlight of the saw is the sliding table. It glides along a guide rail running on 4 bearings. When pulled into the forward position it can load a 500mm (20″) board onto the table. There is a vertical work clamp to hold the board whilst making the cut. The angle of the back fence can be adjusted through a range of 45 degrees, with a positive stop to bring it back to 90 degrees. A flip over length stop completes the setup for making repeat cuts.



The hose kit supplied collects dust from the overhead saw guard and from underneath the blade meeting at a single 100mm diameter hose connection point at the back of the machine.

Main Table Size 420mm x 635mm

Table Size (with Extensions) 1000mm x 635mm

Maximum Ripping Width 730mm

Crosscut Table Size 400mm x 180mm

Maximum Crosscutting Width 500mm

Max. Using Alternate Assembly 680mm

Blade Tilt (To Left) 90 - 45 degrees

Cutting Depth at 90 degrees 80mm

Cutting Depth at 45 degrees 64mm

Blade Diameter 250mm

Blade Bore 30mm

Work Table Height 845mm

Mitre Guide T-Slot Width 15/19mm

Mitre Guide T-Slot Depth 7mm

Motor (induction) Braked 2200w (3hp) / 240v

No-Load Blade Speed 4000 rpm

Minimum Blade Width (Kerf) 3.0mm

Assembled Dimensions (WxDxH) 1480mm x 1000mm x 1100mm

Assembly Time Required 60 Minutes (Needs 2 People)

Shipping Dimensions 1 750 x 620 x 510mm

Shipping Dimensions 2 730 x 450 x 190mm

Shipping Dimensions 3 1040 x 180 x 80mm

Minimum Access Door Width 630mm

Weight (Gross / Net) 119 / 110Kg

Rating Light Trade

Product Guarantee 5 Years
