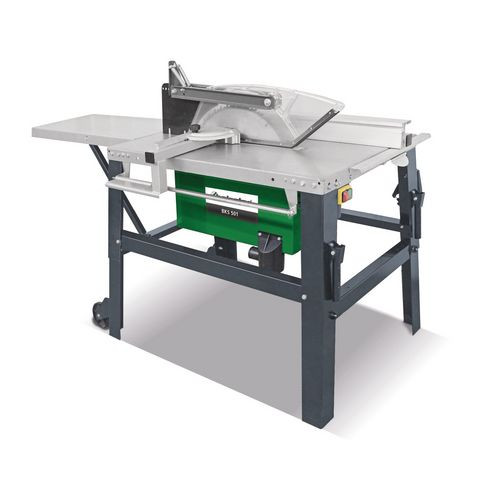

- Transparent protective hood for the safety of the user and for an optimal view of the cutting line
- Angle adjustable cross cutting device with wedge cutting gauge on rod üguided by maintenance-free slide bearings
- aluminium parallel fence with high and flat contact edge and eccentric clampingfacilitates the trimming of boards, rip cuts, bevel and angle cuts
- Folding table extension for long workpieces
- Easy to move due to integrated running gear and folding transport handles
Equipment:
- Pendulum safety guard, transparent
- Angle-adjustable cross-cutting device with wedge cutting gauge, fold-down
- Aluminium parallel fence with high and flat contact edge
- Table extension (800 x 400 mm), fold-down
- Large crane eyelets
- Phase inverter
- Brackets for aluminium parallel fence and mounting tool
Circular saw unit
Max. cutting height 90° 150 mm
(Main) saw blade diameter 500 mm
(Main) saw blade speed 2800 min¯¹
Dimensions and weights
Length approx. 1870 mm
Width/depth approx. 810 mm
Height approx. 1170 mm
Weight approx. 103 kg
Electrical Data
Absorbed power drive motor 4.2 kW
Efficiency class drive motor IE3
Supply voltage 400 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter bottom 95 mm
Saw blade protection extraction port diameter 50 mm
Sliding carriage and table
Table length 1000 mm
Table width 660 mm
Work height 850 mm
VPE 1
