- Large cast iron table
- Stable suspension of the saw unit
- Saw blade height adjustment via handwheel from the operator front
- Equipped with a powerful motor and thermal overload protection
- Integrated extraction connection on the saw blade guard
- Table extension as standard
- Cast iron suspension of the saw unit
- The solid construction ensures particularly high stability and vibration damping
- Saw blade inclination 45° degrees to the right

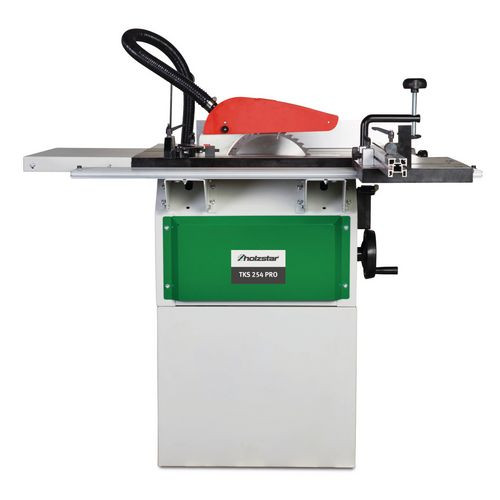

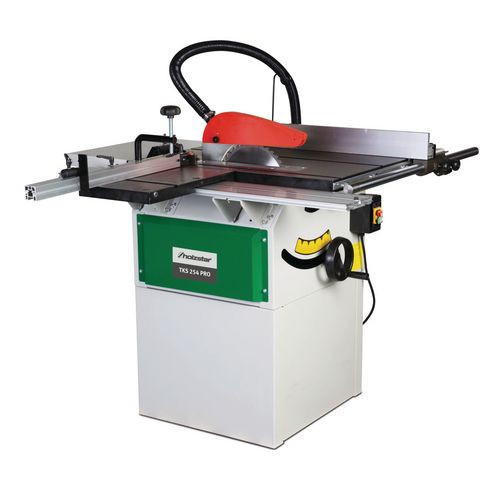

Circular saw unit
Max. cutting width with rip fence 610 mm
Max. cross cut width left from saw blade 550 mm
Saw blade angle -45 – 90 °
Max. cutting height 90° 80 mm
Max. cutting height -45° 56 mm
(Main) saw blade diameter 254 mm
(Main) saw blade speed 4000 min¯¹
Dimensions and weights
Length approx. 1100 mm
Width/depth approx. 1090 mm
Height approx. 870 mm
Weight approx. 132 kg
Electrical Data
Drive motor output 1,5 kW
Absorbed power drive motor 2.1 kW
Total output 2.1 kW
Total rated value 9.3 A
Supply voltage 230 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter bottom 100 mm
Saw blade protection extraction port diameter 30 mm
Noise emission
Sound pressure level 84.2 dB(A)
Sliding carriage and table
Sliding carriage length 400 mm
Sliding carriage width 250 mm
Table length 720 mm
Table width 480 mm
Work height 830 mm
VPE 1
