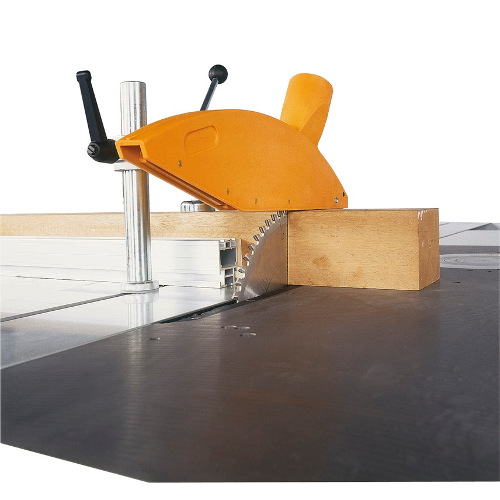

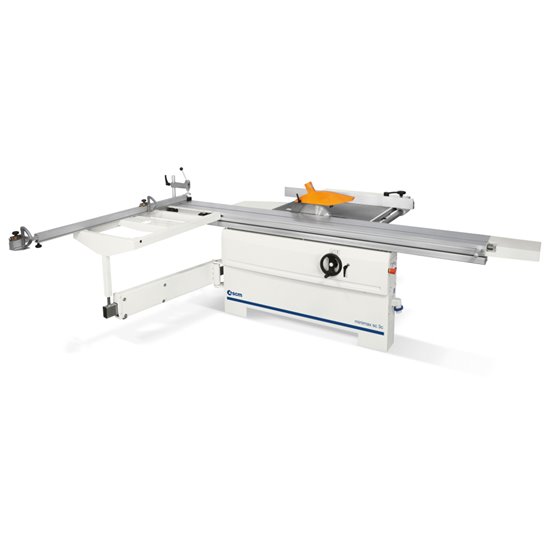

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade fitted.

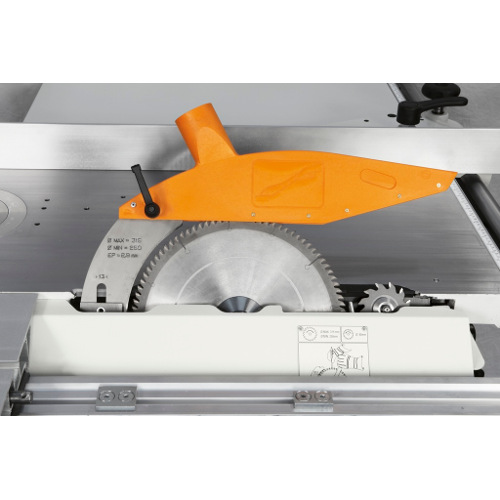

New scoring unit that can easily be adjusted from outside the machine.

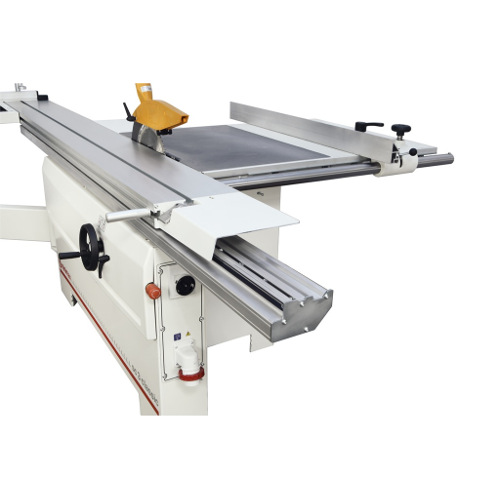

Easier, more precise cutting: a perfectly stable support is guaranteed, even for large workpieces, by the very wide sliding table and the large squaring frame (960mm) provided as standard.
Perfect parallel cuts thanks to the anodized aluminium parallel fence with support, quick locking device and micrometric adjustment. Precise and rapid positionings: the fence slides fluidly on a 45 mm diameter round bar in rectified steel.
Extraordinary power: the 5kW (6,6hp) 50Hz three-phase motors are provided as standard.
Depending on the specific location, we may in some cases be able to offer a cheaper delivery price. Please get in touch for details.
Max. saw blade diameter with scoring blade fitted: 315 mm
Max. saw blade projection from table at 90°/45°: 100/80 mm
Max.Squaring stroke: 2600 mm
Cutting width on parallel fence: 1270 mm
Three-phase motor starting from: 5 (6) kW - 50 (60) Hz
No details given.
