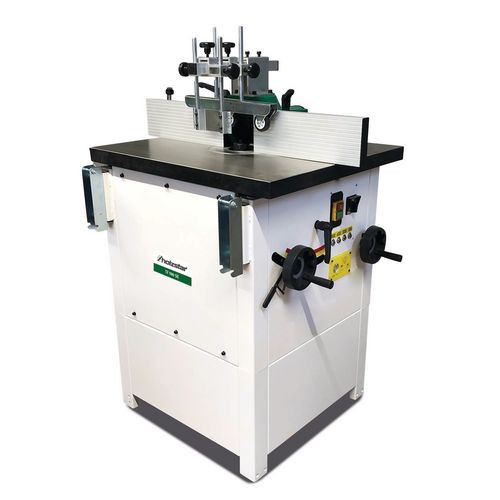

- Milling stop with finely adjustable aluminum stops
- Quick and easy changing of the speed using multi-V-belts
- Display of the speed setting by LED lights
- Large work surface due to the solid and torsion-free gray cast iron table
- Large milling unit made of gray cast iron, swiveling from +5 to -30°
- Selector switch for clockwise/counterclockwise rotation of the milling spindle
- Hold-down device for precise workpiece guidance
- Sliding table and chassis device available as accessory
Dimensions and weights
Length approx. 750 mm
Width/depth approx. 660 mm
Height approx. 1200 mm
Weight approx. 174 kg
Electrical Data
Drive motor output 2,2 kW
Absorbed power drive motor 2,8 kW
Supply voltage 400 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter 100 mm
Milling cutter diameter max.
Max. tool diamter lowerable 200 mm
Milling spindle
Angle -5 to +30 °
Usable length 100 mm
Stroke 100 mm
Max. protrusion over the table 100 mm
Speed(s) 1800/3000/6000/9000 min¹
Speed regulation Strap
Speed display LED on the machine front
Arbor diameter 30 mm
Work table
Length 710 mm
Width 640 mm
Table height 900 mm
Sliding carriage length 1200 mm
Sliding carriage width 700 mm
Sliding carriage height 500 mm
VPE 1
