Construction

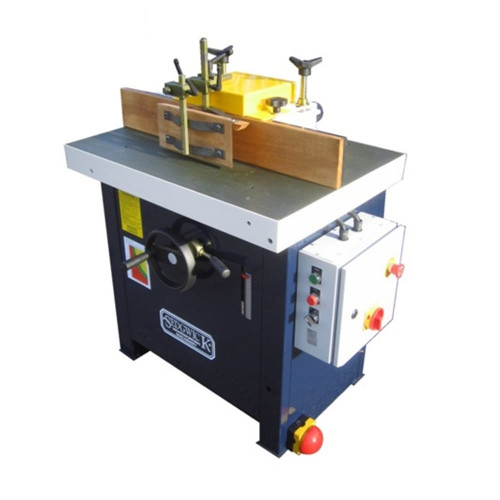

A cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, motor housing, and rise & fall mechanism. All tables feature an anti-friction planed finish. The bearing housing, rise & fall assembly and motor mountings are also in machined cast iron. The spindle is belt driven by an industrial motor and runs in "sealed for life" bearings, which require only minimal maintenance.
Ease of Operation
The spindle rise and fall mechanism is operated by a handwheel at the front of the machine, and the spindle height read from an adjacent scale. The SM210 features a cast iron 'horseshoe' type assembly with independently adjustable precision-ground fence plates and movement indicators. Changeover between the four spindle speeds is effected by quick and easy belt re-positioning. A viewing
panel showing pulley speed is incorporated.
Versatility
The machine's removable spindle allows the operator to select between 30mm and 11/4" dia. spindles, as well as offering the flexibility of optional router or tenoning spindles.
Safety Features
The machine is equipped with a fabricated steel cutter guard and a robust shaw guard set with hexagonal mountings and steel ratchet handles. Twin outlets facilitate dust extraction from both the cutter well and fence locations. Additional safety features include: automatic braking; starter with thermal overload no volt release protection and lock-off emergency stop; lockable isolator; electronically interlocked door; a footstop and a socket for a power feed unit.
Depending on the specific delivery location, we may in some cases be able to offer a cheaper price. Please get in touch for details.
- Maximum cutterblock diameter 125mm
- Maximum profiling cutter dia 210mm
- Maximum cutter weight 4kg
- Spindle diameter 30mm (Optional 11/4")
- Spindle speeds 3000/4500/6000/8000rpm
- Dust extraction outlets 125 & 100mm
- Total air volume required 1870cm/h
- Full load current 15.4a / 40a fuse
- Dimensions (machine only) 1020 x 680 x 1420mm
- To provide a stable moving platform for tenoning etc. The table is manufactured in steel tube, and runs on precision-ground case-hardened rollers and bearings. A mitre fence with 90-45o adjustment, timber stop and cam action timber clamp are all incorporated.
- To provide protective covering and a point of extraction (100mm) for cutters up to 350mm dia. The lid and visor are both adjustable, and feature a carrying handle.
- To provide increased support for long work-pieces. Manufactured in strong sheet steel, a set of two extends the table length by 1000mm
- For use with counterbored cutterheads.
- The router spindle is quickly interchanged, without disturbing the main spindle or bearings. Particularly valuable when machining small pieces, the unit comes with a 1/2" collet, nut and spanner.
