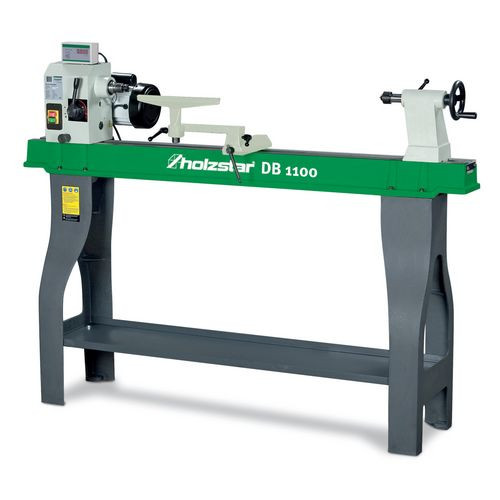

- Torsionally rigid gray cast iron machine bed for smooth running and precision
- Tailstock and headstock also made of sturdy gray cast iron
- Wide, easily adjustable turning steel support
- Tailstock with quick release lever and handwheel
- Tailstock (stroke 50 mm) as standard with revolving center point
- Tailstock quill with bore for machining long workpieces
- Variable speed regulation from 500 - 2000 min-1 with digital speed display
- The headstock can be rotated by 180°
- Ideal for turning large diameter
Max. turning diameter 358 mm
Speeds 500 - 2000 min¯¹
Speed stages 10
Speed control Mechanical variable
Travel of tailstock sleeve 50 mm
VPE 1
Dimensions and weights
Length approx. 1620 mm
Width/depth approx. 340 mm
Height approx. 1215 mm
Weight approx. 111 kg
Electrical Data
Supply voltage 230 V
Mains frequency 50 Hz
