Functions
Quality down to the finest detail.

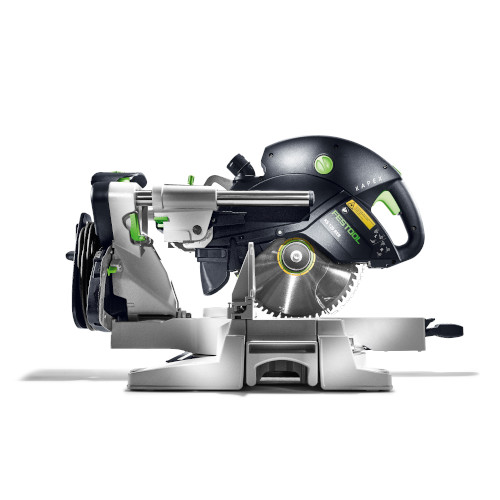

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
- Twin-column guide with two bearings for unique precision
- Dual-line laser for an accurate indication of the cutting line
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
- Special cutting position for cutting depths up to 120 mm
- FastFix saw blade changing for adaptation to the working material
- Twin-column guide for accurate cuts
- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
Main applications
- Trimming skirting boards and cornices up to 120 mm in height – no calculations
- Cutting boards and panels up to 305 x 88 mm
- Trimming crown mouldings up to 168 mm in their original wall position
- Trimming square timber and beams up to 88 mm thick
Power consumption 1 600 W
Idle engine speed 1 400 - 3 600 min⁻¹
Saw blade diameter 260.00 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168.00 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Cable length 3.50 m
Dust extraction connection diameter 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168.00 mm
Work height 900.00 mm
Product weight without accessories 24.30 kg
Transport weight incl. accessories 26.00 kg
Drive type Mains

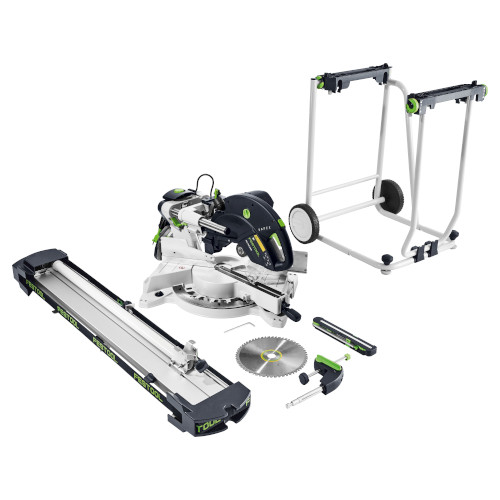

Saw blade HW 260x2,5x30 W60
Bevel SM-KS
Terminal KL-KS 120
hex key, WAF 6
Underframe UG-KAPEX KS 120
Trimming attachment KA-UG-KS 120-R/L
