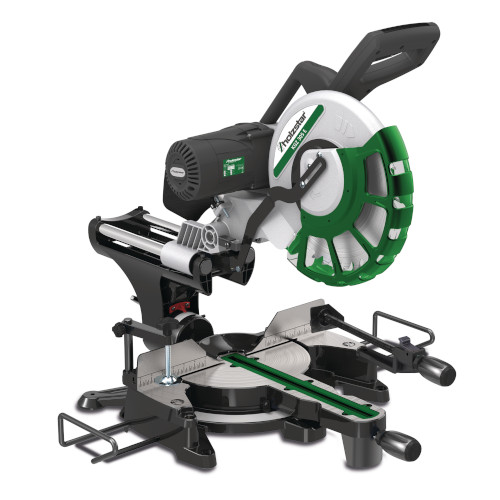

- Infinitely adjustable double mitre and tilt to the left
- Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable
- Laser projection on the workpiece for precise control of the cutting position
- Laterally extendable support aids for longer workpieces
- Double adjustable cross-cut depth limiter
- Pull function for extended cutting range
- Standard with hold-down clamp for safe workpiece locking
- Extraction connection for dust collection bag or connection of an external extraction system
Saw band speed 4500min
Saw blade diameter 305mm
Extraction duct outside nominal width 41mm
Max. bevel angle range left 45°
Max. bevel angle range right 45°
Dimensions and weights
Length (product) approx. 835mm
Width/depth (product) approx. 570mm
Height (product) approx. 790mm
Net weight approx. 23kg
Electrical Data
Supply voltage 230V
Mains frequency 50Hz
Drive motor output 2.0kW
Cutting capacity
Cutting capacity at 0° inclination / 0° mitre 100 x 340mm
Cutting capacity at -45° inclination / 0° mitre 40 x 340mm
Cutting capacity at +45° inclination / 0° mitre 40 x 340mm
Cutting capacity at 0° inclination / -45° mitre 100 x 240mm
Cutting capacity at -45° inclination / -45° mitre 40 x 240mm
Cutting capacity at +45° inclination / +45° mitre 40 x 240mm
