Concentrated torque and up to twice as fast work progress with an increased saw blade service life
Virtually splinter-free on both sides thanks to attachable splinter guard
The cutting edge from 90° to 47° remains unchanged even when the saw swivels
Top-class sawing system thanks to a variety of accessories
Guide wedge for safer work and simple positioning in existing joint
Angle adjustment with undercut function from -1° to 47°
Millions of saws do not lie: The TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and tried-and-test details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.

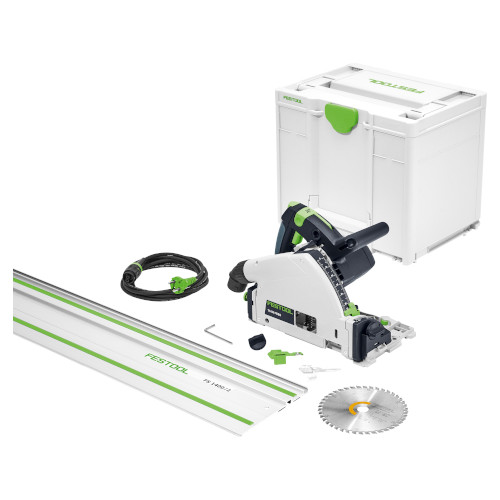

circular saw blade WOOD FINE CUT HW 160 x 1, 8 x 20 WD42, splinterguard, Flag window; vision panel, hex key, WAF 5, guide rail FS 1400/2, Systainer SYS3 M 337
Product strengths
Angle adjustment with undercut function from -1° to 47°
Concentrated torque and up to twice as fast work progress with an increased saw blade service life
Guide wedge for safer work and simple positioning in existing joint
The cutting edge from 90° to 47° remains unchanged even when the saw swivels
Top-class sawing system thanks to a variety of accessories
Virtually splinter-free on both sides thanks to attachable splinter guard
Power consumption - 1200 W
Idle engine speed - 2000 - 5800 min⁻¹
Saw blade diameter - 160 mm
Angular range - -1 - 47 °
Cutting depth - 0 - 55 mm
Cutting depth 45° - 43 mm
Dust extraction connection diameter - 27/36 mm
Cable length - 4 m
Product weight - 4.8 kg
Sawing metal: A-weighted sound pressure level, LpA - 90 dB(A)
Sawing metal: Total vibration average, Ah - 2.5 m/s²
Sawing metal: Uncertainty (vibration) K - 1.5 m/s²
Sawing metal: A-weighted sound power level, LWA - 101 dB(A)
Sawing metal: Standards series EN - 62841
Sawing metal: Uncertainty (noise) K - 3 dB
Sawing wood: Total vibration average, Ah - 2.5 m/s²
Sawing wood: A-weighted sound pressure level, LpA - 90 dB(A)
Sawing wood: Uncertainty (noise) K - 3 dB
Sawing wood: A-weighted sound power level, LWA - 101 dB(A)
Sawing wood: Standards series EN - 62841
Sawing wood: Uncertainty (vibration) K - 1.5 m/s²
Flag window; vision panel
Systainer SYS3 M 337
circular saw blade WOOD FINE CUT HW 160 x 1, 8 x 20 WD42
guide rail FS 1400/2
hex key, WAF 5
splinterguard
