Functions
Power and ease of operation in perfect harmony.

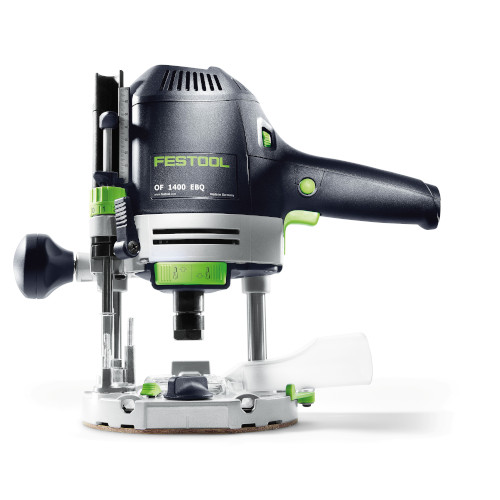

The handy multi-talent: The OF 1400 router weighs just 4.5 kg – one of the lowest machine weights in its class. The 70 mm routing stroke is impressive when making recesses for fittings or routing with templates. It also has a comprehensive set of equipment that enables it to master virtually any routing task.
- Pure precision: rigid base plate due to guide columns on both sides
- Short set-up times: Rocker and ratchet principle for convenient cutter changes
- Routing depth adjustment to 1/10 mm
- Quick-acting brake and MMC electronics
- Tool-less copying ring changes
- Up to 99 % dust extraction when routing with chip deflector and dust extraction hood
Main applications
- Rounding, chamfering, rebating and profiling edges
- Routing circles and cut-outs with the multi-routing template
- Grooving rear panels or recessing dovetail batons with the guide system
- Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
- Routing mineral material (max. cutter Ø 45 mm)
Power consumption 1 400 W
Idle engine speed 10 000 - 22 500 min⁻¹
Collet dia. 6 - 12.7 mm
Routing stroke 70.00 mm
Routing depth fine adjustment range 8.00 mm
Bench opening 63.00 mm
Dust extraction connection diameter 27/36 mm
Cable length 4.00 m
Product weight without accessories 4.60 kg
Transport weight incl. accessories 9.24 kg
Drive type Mains

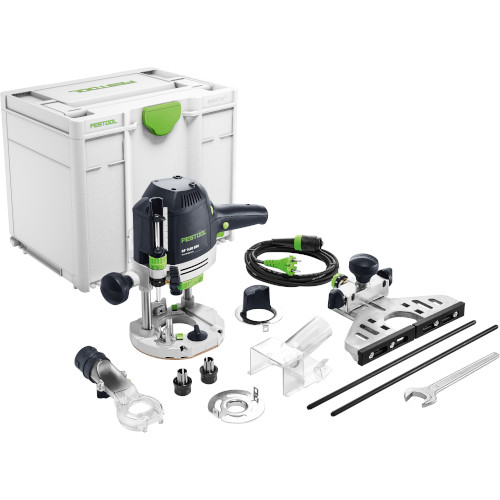

Collet SZ-D 6,35/OF 1400/2000/2200
Collet SZ-D 12,7/OF 1400/2000/2200
Parallel side fence SA-OF 1400
Copying ring KR-D 30,0/OF 1400
extraction hood, top
Chip deflector KSF-OF 1400
open ended spanner, WAF 24
plug it-cable H05 RN-F-4
Systainer³ SYS3 M 337
