Functions

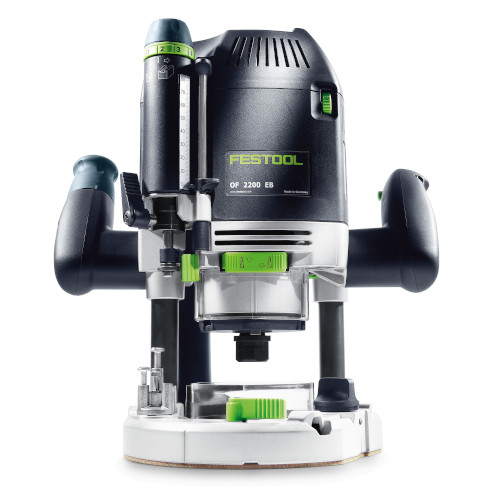

The power pack with enormous torque.
More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest low-end torque, the highest precision and the greatest ergonomic comfort. No matter what your task is – with the OF 2200, you have the solution in your hands.
- Top power development and fully variable speed for hard materials and increased material thicknesses
- Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently
- Dual guide column clamp for extra torsional rigidity and greater precision
- Maximum safety: safety brake stops the cutter promptly
- Tool-free copying ring and base-runner change
- Fast, convenient router-bit change with rocker and ratchet principle
- Detachable base plate for fast profile cutter adjustment
- Simple and exact routing depth setting to 1/10 mm
- Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher
Main applications
- Rabbeting, grooving and profiling
- Routing large cutouts, circles and arcs with the MFS routing template
- Creating worktop corner joints with the worktop template
- Routing seals and espagnolettes in windows and doors
Power consumption 2 200 W
Idle engine speed 10 000 - 22 000 min⁻¹
Collet dia. 6 - 12.7 mm
Routing stroke 80.00 mm
Routing depth fine adjustment range 20.00 mm
Bench opening 89.00 mm
Dust extraction connection diameter 36/27 mm
Cable length 4.00 m
Product weight without accessories 8.30 kg
Transport weight incl. accessories 11.82 kg
Drive type Mains

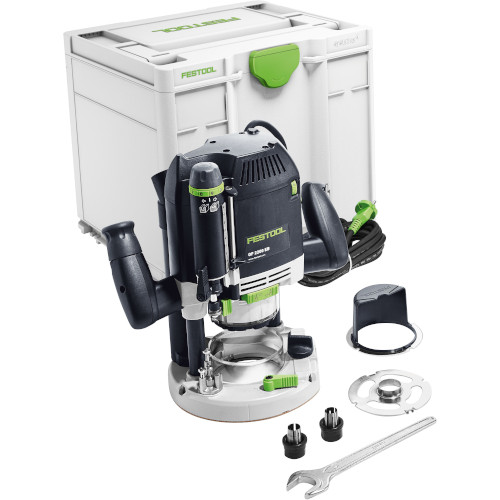

- Collet SZ-D 6,35/OF 1400/2000/2200
- Collet SZ-D 12,7/OF 1400/2000/2200
- Copying ring KR-D 30,0/OF 2200
- Chip deflector KSF-OF 2200
- open ended spanner, WAF 24
- Systainer³ SYS3 M 337
